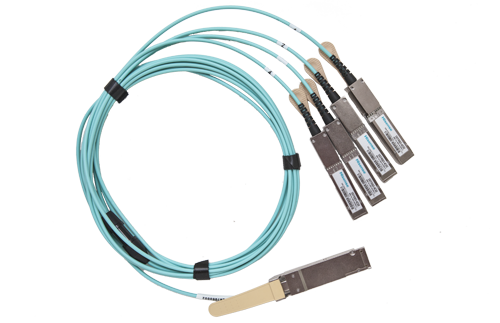

DEF8501 QSFP+ to 4× SFP+ AOC
40Gb/s to 4x10Gb/s Active Optical Cable

The DEF8501 is a QSFP+ active optical cable (AOC) to 4× SFP+ Active Optical Cable break-out . . It operates at 10.3125Gb/s and the cable length is up to 100m. QSFP+ AOC end is compliant with the QSFP+ MSA, IEEE802.3ba 40GBASE- SR4 specifications. Each SFP+ end is compliant with the SFF8431 specification and SFF8432  MSA.

Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
DEF8501-4CXX QSFP+/SFP+ Cable 1~100m C Multi-mode 850nm 40G/4x10G - -

• 40GbE and 10GbE break-out applications

• High performance computing interconnect

• Channel data rate up to 10.3125Gb/s

• Hot Pluggable

• Up to 100m link on Multi-mode Fiber

• QSFP+ MSA  Compliance

• SFP+ MSA  Compliant package

• Diagnostic monitors for module temperature, and module supply

• Case Operating Temperature Ranges:

Commercial: 0 to 70ºC

RoHS compliance
