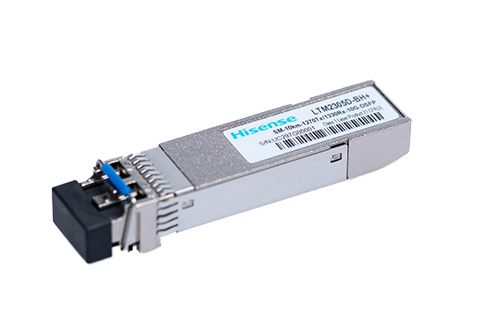

LTM2305D DSFP+ Bidirectional Transceiver 10Gb/s 10km

10Gb/s 10km

The LTM2305 Compact SFP+ transceiver is intended for 10km reach service from 9.95Gb/s to 10.3125Gb/s 1270nm/1330nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates over the commercial and industrial temperature ranges .The low jitter and low bit error rate optical assembly features a 1270nm DFB laser transmitter and a PIN/TIA receiver.

REQUEST
Product Name Part Number Package Interface Reach Temp Tx Output Tx Rate Tx Wavelength Rx Input Rx Rate Rx Wavelength
10G BIDI DSFP LTM2305D-BC+
LTM2305D-BH+
DSFP LC 10km C.H -8.2~0.5dBm 10.3125Gb/s 1270nm -14.4dBm 10.3125Gb/s 1330nm

•  High-speed storage area networks

•  Computer cluster cross-connect

•  Custom high-speed data pipes


• 2x10 Compact SFP+ Package Outline

• Single Fiber, Dual LC interface, Full Duplex Operation

• LC Optical Interface

• 1270nm CW Mode DFB Optical Transmitter

• 1330nm CW Mode PIN Optical Receiver

• IEEE 802.3ae Base-LR/LW

• SFP+ MSA

• Compliant with RoHS"
