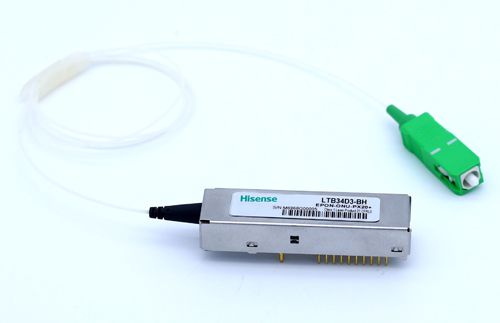

LTB34D3 2×10 SFF Pigtail EPON ONU Transceiver

PX-20+ 1250Mb/s

The LTB34D3 EPON ONU is designed for P2MP Fiber to FTTX systems employing high-speed burst mode TDM recervers/transmitters in 1250Mb/s.

The device is based on the IEEE 802.3ah specification and incorporates a 1310nm burst mode F-P transmitter and 1490 CW mode PIN receiver.

The industry standard 2×10 SFF package incorporates a pigtail fiber with SC/APC or SC/UPC connector.

MORE INFO
Product Name Part Number Package Interface Reach Temp Tx Output Tx Rate Tx Wavelength Rx Input Rx Rate Rx Wavelength
EPON ONU LTB34D3-BC+/CC+
LTB34D3-BH+/CH+
SFF SC/APC
SC/UPC
20km C,H 0~4dBm 1.25Gb/s 1310nm -27dBm 1.25Gb/s 1310nm

•  Ethernet Passive Opitacal Access Network

•  Fiber to the Home

•  Fiber to the Building

•  Fiber to the Curb

•  Dual Wavelength Bidirectional Tx/Rx

•  1250Mb/s Symmetrical Tx/Rx Data Rate

•  1310nm F-P Burst Mode Laser

•  1490nm CW Mode PIN/TIA Receiver

•  Single 3.3V DC supply

•  Low Power Consumption

•  2x10 SFF Package With Pigtail Optical Connector                    •  Standards

   IEEE 802.3ah Compliant

   ROHS6
