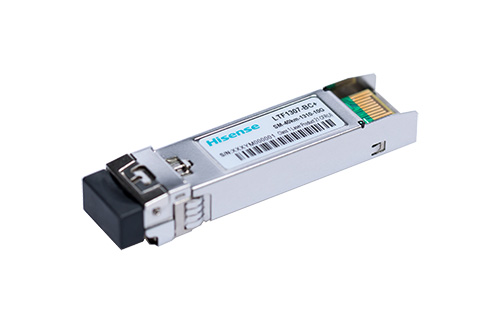

LTF1307 SFP+ Optical Transceiver

10G Ethernet 9.953 to 10.3125Gb/s 1310nm 40km

The LTF1307 SFP+ transceiver is intended for 40km reach service from 9.95Gb/s to 10.3125Gb/s with 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the commercial temperature ranges. They are compliant with IEEE802.3ae 10GBASE-ER/EW , SFF- 8431 and SFF-8432. The low jitter and low bit error rate optical assembly features a 1310nm DFB laser transmitter and APD/TIA receiver. It incorporates the SFP+ MSA LVTTL Loss of Signal (Rx_LOS), Tx Fault (Tx_FAULT), MOD_ABS and Tx Disable (Tx_DIS) monitor and control functions. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.


REQUEST
Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LTF1307-BC+ SFP+ LC 40km C single-mode 1310nm 10Gb/s -2~4dBm -20dBm

• 10G BASE-ER/EW 10G Ethernet


LC Duplex optical interface

•  Maximum link length of 40km

•  9.95Gb/s to 10.3125Gb/s

•  +3.3V power supply

•  Low DC power consumption

•  2x10 SFP+ MSA compliant package

•  Hot swappable

•  High performance 1310nm DFB laser

•  High sensitivity APD/TIA optical receiver

•  Single Mode operation

•  BER < 1X10-12

•  Case Operating temperature ranges:   Commercial: 0oC to 70oC

•  Data and Control Interfaces:

•  Tx Data CML/AC Coupled

•  Rx Data CML/AC Coupled

•  Tx_DIS LVTTL

•  Tx_FAULT LVTTL

•  Rx_LOS LVTTL

•  MOD_ABS LVTTL

•  2-wire I2C data bus    RoHS 6 compliance
