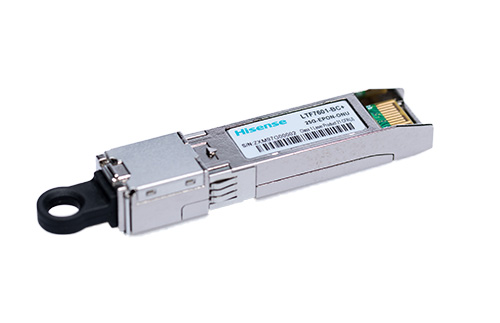

SFP28 25G EPON ONU Transceiver
The LTF7601 is intended for 25G EPON ONU DEMO inseparate SFP28 housing. It is a series module with an O-band 25.78Gbps upstream transmitter and a O-band 25.78Gbps downstream receiver which work in TDM configuration. The transmitters can be controlled by the LVTTL Tx_Burst function and the receivers incorporate the LVTTL Rx_LOS output.
The LTF7601 is designed to support up to 16 subscribers over distances of up to 20km in the ODN.It is FDA 21CFR1040.10 and IEC 60825-2 Class I laser safety compliant and meets the EEC Directive 2002/95/EC for RoHS compliance.
| Product Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25G EPON ONU | LTF7601-BC+ | SFP28 | SC | 20km | C | 1.3~7dBm | 25.78Gb/s | 1260nm~1280nm | -21.4dBm | 25.78Gb/s | 1328nm~1360nm |
• 25G EPON Access networks
• FTTH
• FTTB
• FTTC
• SFP28 Package Control and Monitor Interface
• 3.3V power supply LVTTL Tx_Burst
• 2 Lambda LVTTL Rx_LOS
• Single SC receptacle optical connector LVTTL TX_Fault
• Hot pluggable LVTTL TX_SD
• 2x10 SFP28 Electrical Interface LVTTL P_Down
