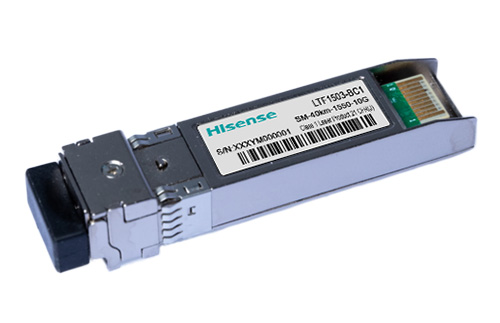

LTF1503 SFP+ Optical Transceiver
9.95Gb/s to 11.3Gb/s 1550nm 40km with CDR
The LTF1503 SFP+ transceiver is intended for 40km reach service from 9.95Gb/s to 11.3Gb/s 1550nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the in the commercial temperature range.
REQUEST| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| LTF1503-BC1 | SFP+ | LC | 40km | C | Single-mode | 1550nm | 10Gb/s | -2~2dBm | -16.5dBm |
• 10G BASE-ER/EW 10G Ethernet
• SDH/SONET
• LC Duplex optical interface
• Maximum link length of 40km
• 9.95Gb/s to 11.3Gb/s
• +3.3 V power supply
• High performance 1550nm EML laser
• High sensitivity PIN/TIA optical receiver
• Standards
802.3ae
SFP MSA
SFF8472
802.3ae
