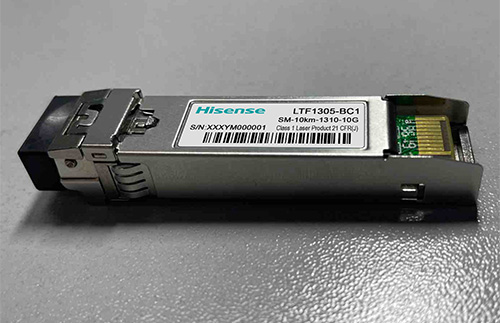

LTF1305 SFP+ Optical Transceiver
9.95Gb/s to 11.3Gb/s with CDR 1310 10km
The LTF1305 SFP+ transceiver is intended for 10km reach service form 9.95Gb/s to 11.3Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the commercial and industrial temperature ranges. They are compliant with IEEE802.3ae 10GBASE-LR/LW , SFF-8431 and SFF-8432.It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains.
REQUESTPart Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
---|---|---|---|---|---|---|---|---|---|
LTF1305-BC1 LTF1305-BH1 |
SFP+ | LC | 10km | C,H | Single-mode | 1310nm | 10Gb/s | -8.2~0.5dBm | -14.4dBm |
• 10G BASE-LR/LW Ethernet
• STM I-64.1
• SONET OC-192 SR-1
• LC Duplex optical interface
• 9.95~11.3Gb/s(GN2010D)
• 10km SMF
• power comsuption:1.5W
• Standards
802.3ae
SFF8431
SFF8432
