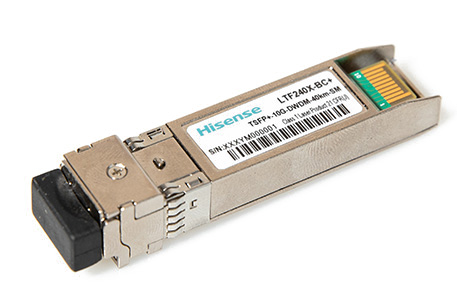

LTF240XM SFP+ Tunable DWDM Optical Transceiver

C-band DWDM 8.5 to 11.09Gb/s 40 km

The LTF240X Tunable SFP+ module is a high performance tunable pluggable transceiver for use in the C-band window. The module is intended for 40km reach service from 8.5Gb/s to 11.09Gb/s high-speed telecommunications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the commercial temperature range.  They are compliant with IEEE802.3ae 10GBASE-ER/EW , SFF-8431 and SFF-8432.


REQUEST
Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LTF240X-BC+ SFP+ LC 40km C Single-mode C-Band tunable DWDM 10Gb/s -3~3dBm -16dBm

• 10G BASE-ER/EW 10G Ethernet

•  8G Fibre Channel

•  LC Duplex optical interface

•  Maximum link length of 40km

•  8.5G to 10.5Gb/s

•  +3.3 V power supply

•  Low DC power consumption

• 2x10 SFP+ MSA compliant package

•  Hot swappable

•  High performance 1550nm EML laser

•  High sensitivity PIN/TIA optical receiver

• Single Mode operation

•  BER < 1X10-12
