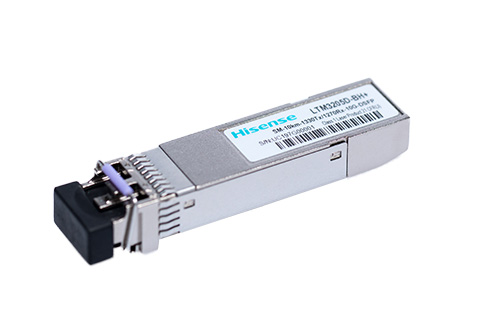

LTM3205D DSFP+ Bidirectional Transceiver

10Gb/s 10km

The LTM3205 Compact SFP+ transceiver is intended for 10km reach service from 9.95Gb/s to 10.3125Gb/s 1330nm/1270nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates over the commercial and industrial temperature ranges .The low jitter and low bit error rate optical assembly features a 1330nm DFB laser transmitter and a PIN/TIA receiver.

REQUEST
Product Name Part Number Package Interface Reach Temp Tx Output Tx Rate Tx Wavelength Rx Input Rx Rate Rx Wavelength
10G BIDI CSFP LTM3205D-BC+
LTM3205D-BH+
DSFP LC 10km C.H -8.2~0.5dBm 10.3125Gb/s 1330nm -14.4dBm 10.3125Gb/s 1270nm

• High-speed storage area networks

• Computer cluster cross-connect

• Custom high-speed data pipes


• 2x11 Compact SFP+ Package Outline

• Single Fiber, Dual LC interface, Full Duplex Operation

• LC Optical Interface

• 1330nm CW Mode DFB Optical Transmitter

• 1270nm CW Mode PIN Optical Receiver

• IEEE 802.3ae Base-LR/LW

• SFP+ MSA

• Compliant with RoHS
