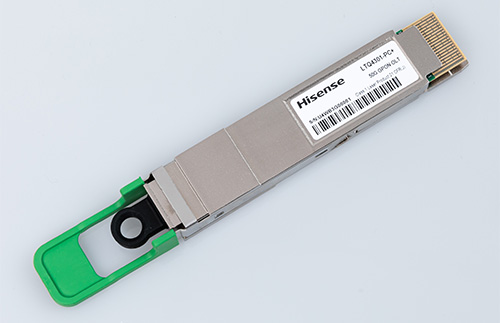

QSFP112 50G GPON OLT Transceiver
The LTQ4301-PC+ is intended for 50G GPON OLT DEMO in a QSFP112 housing. It is using a 1342nm 49.7664Gbps downstream transmitter and a 24.8832Gbps/12.5Gbps upstream receiver which work in TDM configuration. The LTQ4301-PC+ is designed to support up to 16 subscribers over distances of up to 20km in the ODN ,which is just for the 50G GPON pre-DEMO experiment. It meets the EEC Directive 2015/863/EU for RoHS compliance.
REQUESTProduct Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
---|---|---|---|---|---|---|---|---|---|---|---|
50G GPON OLT | LTQ4301-PC+ | QSFP112 | SC | 20km | C | 2dBm | 49.7664 Gb/s | 1340nm~1344nm | -24.5dBm | 24.8832/12.5 Gb/s | 1260~1310nm |
• 50G GPON OLT DEMO Samples
• FTTH
• FTTB
• FTTC
• QSFP112 Package
• 3.3V power supply
• 2 Lambda
• Single SC receptacle optical connector
• Hot pluggable
• 2x19 QSFP112 Electrical Interface
