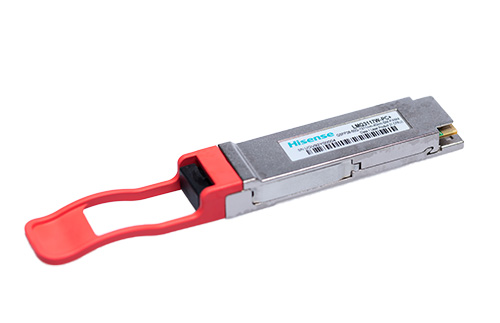

LMQ3117W QSFP28 PAM4 Optical Transceiver
50G 53.125Gb/s 1310nm 40km
The LMQ3117W is a low power consumption QSFP28 PAM4 transceiver with high perfor- mance up to 50G high speed telecom and data communications over single mode fiber. It operates from a 3.3V DC power supply and is offered in the commercial temperature range. The module has an aggregate link bandwidth up to 53.125Gb/s by using 2 electrical lanes , each capable of transmitting 26.5625Gb/s NRZ data, 1 optical lane, capable of 53.125Gb/s PAM4 data over 40km single mode fiber. It is fabricated with a rugged metal housing. The device is Class I laser safety compliant and meets the EU Directive 2002/95/EC for RoHS compliance.
REQUESTPart Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
---|---|---|---|---|---|---|---|---|---|
LMQ3117W QSFP28 | QSFP28 | LC | 40km | C | single-mode | 1310nm | 50Gb/s | 0.4~6.63dBm | -15.1dBm(OMA) |
• 50G BASE-ER
• 5G wireless
• QSFP28 Pin assignment compliant
• Hot Pluggable QSFP28 form factor
• 40km link on SMF
• Cooled EML transmitter
• Case Operating Temperature:
• Commercial: 0 to 70ºC
• Digital diagnostic capabilities
• +3.3V power supply
• LC-Duplex Optical Receptacle
• RoHS6
