RFOG BOSA

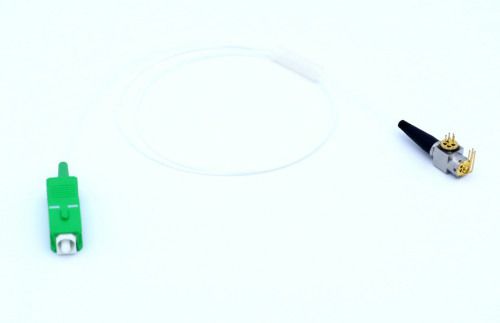

This single-fiber optical subassembly is designed for RFoG PON applications. It is integrated with one 2.5Gb/s 1610nm DFB LD and one 1550nm Receiver with analog PIN together with optical filters for beam direction.
REQUEST| Picture | Product Name | Part Number | Interface | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|
| RFog BOSA | HDB6540 | SC/APC Pigtail | H | 1.2~4.4mW | 2488Mb/S | 1610nm | - | - | 1550nm |
• RFoG PON
• FTTx Optical transmission system
• DFB uncooled laser diode
• No isolator
• Operating data rate up to 2.5Gbps
• SC/APC Pigtail connector
